Fosters Yard Scraper

The fosters Yard scraper is built for strength and designed for its purpose. Our superior design mounts the pivot behind the blade, giving a more even scrape with pressure evenly applied across the blade. this gives less wear on the blades and reduces the “jump” effect ,It also means that the trip system isn’t where the muck is been collected- clever eh !! this saves on wear of the pins and the trip mechanism.

The range of scrapers has expanded,

Three point linkage – Skid steer – Small loader – Tele-handler – Waste applications – Recycling

Description

Straw Spreader ltd has bought the Manufacturing rights to manufacture and distribute fosters yard scrapers

All our scrapers feature our clever & superior pivot point mounted at the rear of the the blade, giving a more even scrape and wear across the blade. This reduces ‘bouncing’ and means the trip system isn’t sat in the muck! All our scrapers are constructed to last, so dont be surprised when you see that our customers say these scrapers last, British manufactured quality.

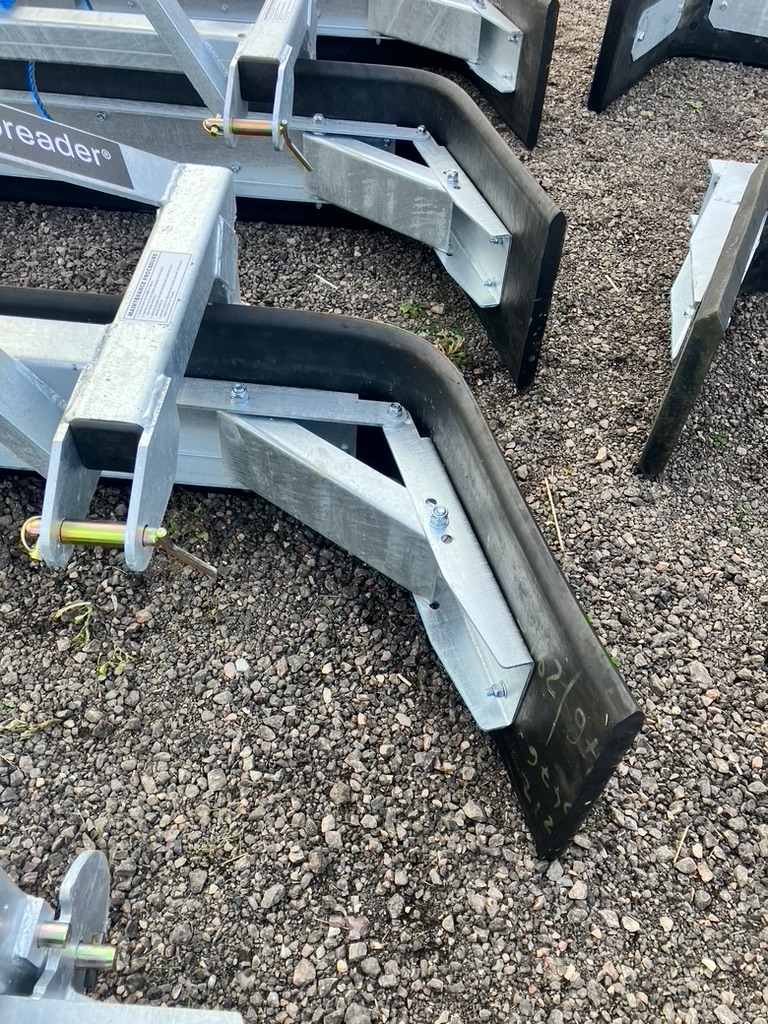

Three point linkage HD model

feature on all models

  • Adjustable from 6′ (1800mm) to 7′ (2100mm)
  • Floating headstock allows blade to follow the ground contours
  • Reversible push/pull action operated from the tractor seat
  • Built in A frame for quick coupling
  • 80mm x 5mm wall box section frames
  • Fully galvanised
  • Quality all rubber blade 35mm thick as standard
  • 50mm thick rubber blades are available as an option, In our opinion they do not perform as well or last any longer than the 35mm rubber due to the stiffness of the rubber on a three point linkage machine , most tractor linkages can not exert enough downward pressure to produce a clean push with the 50mm rubber blade fitted.

Skid Steer yard scraper

The skid steer yard scraper range was designed specifically for use with any skid steer machine, this scraper will make your life on the farm easier, giving both performance and durability on a purpose built machine

Standard feature on all models

  • 50mm thick all rubber blade giving a clean scraper and good wear
  • Fully galvanised 100mm x 5mm wall box section frame for strength and durability
  • Fixed width fully welded channel support for the blade for strength.
  • Headstock mounting pins with added float to give a stable scrape on uneven surfaces
  • Integrated angle iron steps to allow easy and safe access to the front door of the skid steer
  • Price includes the universal “Bobcat” bracket, for any others please enquire as to the price.
  • Reversible from Push to Pull
  • Standard model is 6’6”  (2011mm) wide

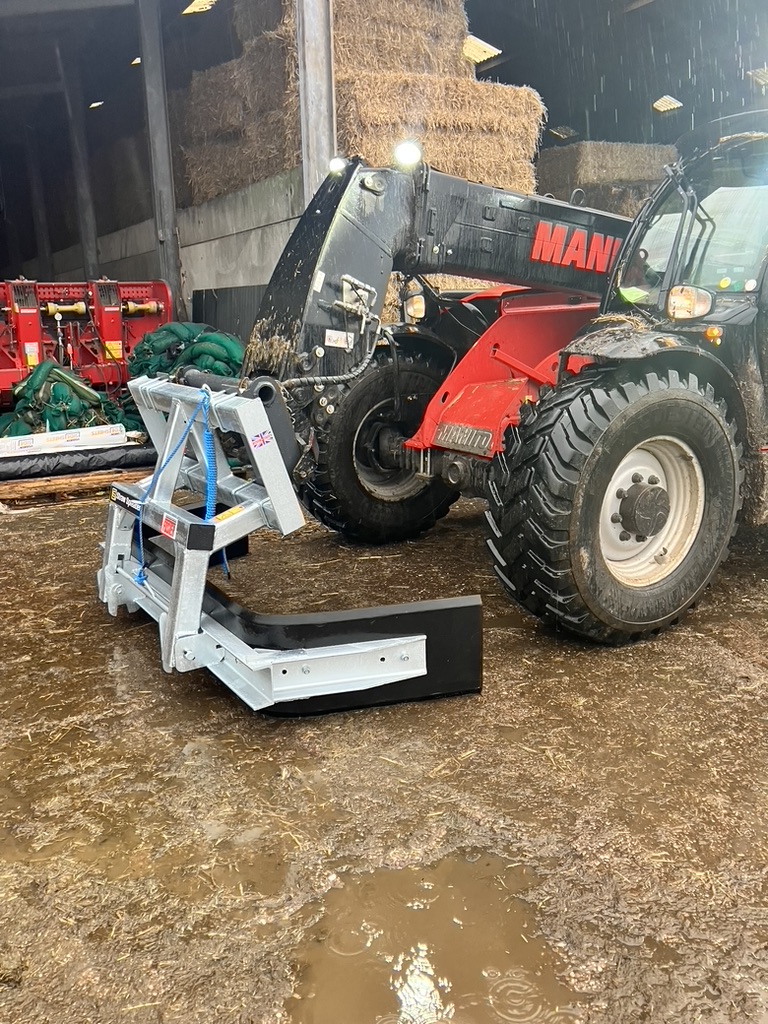

Tractor/ Tele-handler Yard Scraper

These models brings the bracket higher and more closely coupled to the carriage .This gives greater vision from seat of a tractor, loader or Tele-handler. Their are two models to choose from the small loader or the tele-handler version

Standard feature on all models

  • 50mm thick all rubber blade giving a clean scraper and good wear
  • Fully galvanised 100mm x 5mm wall box section frame for strength and durability
  • Fixed width fully welded channel support for the blade for strength.
  • Headstock mounting pins with added float to give a stable scrape on uneven surfaces
  • Bracket area suitably reinforced and central over the blade for best push/pull angle.
  • Reversible from Push to Pull
  • Scrapers are available in two width sizes 6’6”  (2011mm) and 8ft (2400mm)
  • All brackets are bolted on unless ordered to be welded, then they can be galvanised as one piece for added durability.

Special waste application scrapers

we can make a special scraper for clearing yards of glass blast, shot blast and keeping yards clean in Recycling applications and scrap yards

  • Design dependant on application
  • blade will be fitted for application
  • Forklift pockets will be fitted if required
  • All widths can be catered for
  • Dust suppression systems can be fitted
  • Call to have a chat about your needs

If you require something that you can not see on these pages use the contact us tab or phone to make an enquiry
